RG-S6580-48CQ8QC

高密度400G/100Gポートを備えており、広帯域・大容量のサーバーアクセス環境に最適です。

タイプ:

RG-S6580-48CQ8QC
RG-S6580-24DC8QC

特長:

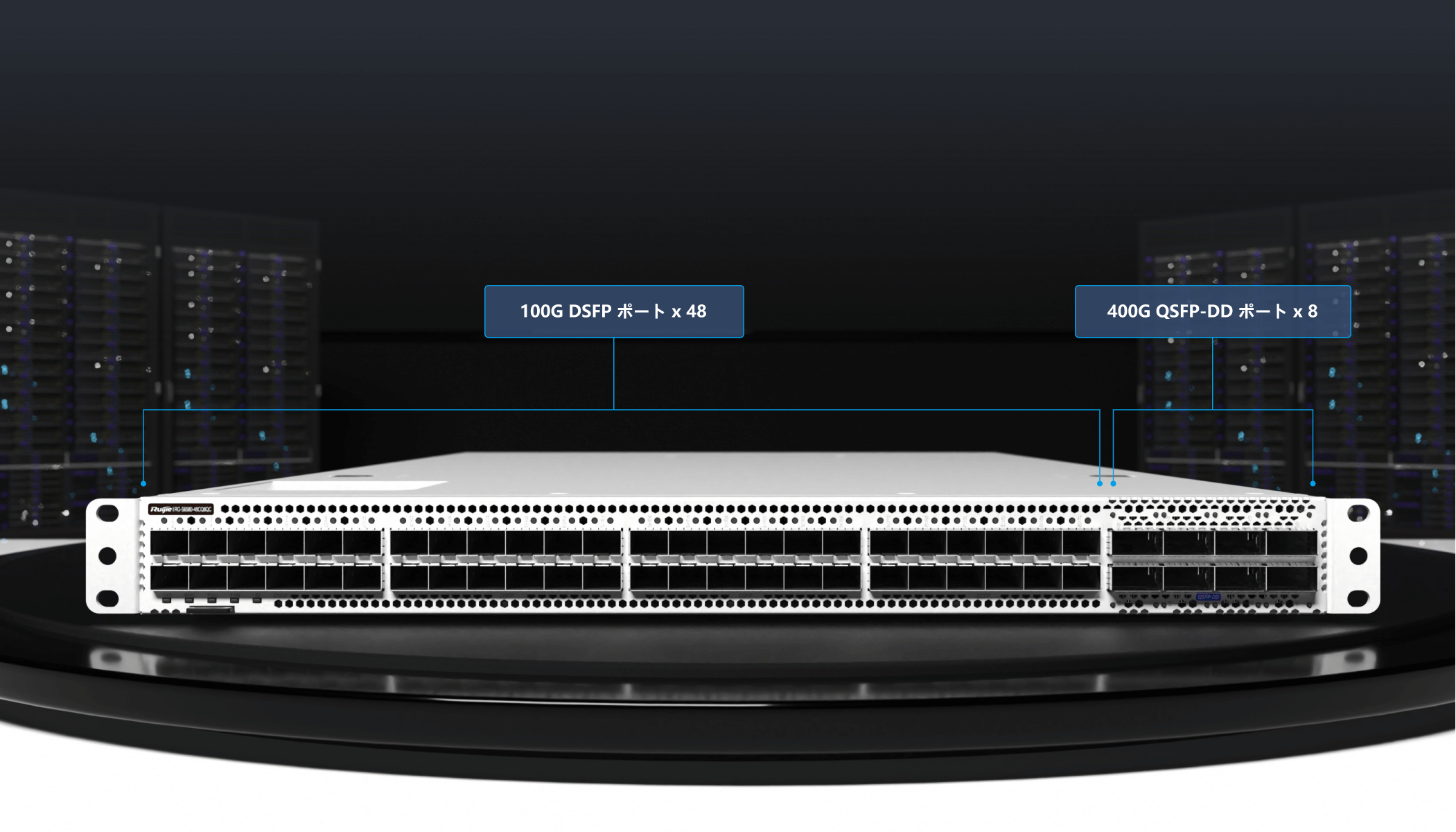

  • 100G DSFP x 48 + 400G QSFP-DD x 8を備えており、柔軟なネットワーク接続と強いパフォーマンスを提供します。
  • M-LAG技術により設備レベルの冗長化を備えており、柔軟性・信頼性の高いネットワーク環境に最適です。
  • ハードウェアレベルの冗長保護により、業務通信の連続性を保証し、ネットワーク通信中断も防止可能となります。
  • エンドツーエンドのRDMA通信プロセス関連プロトコルを備えており、ロスなしのイーサネット環境に最適です。
  • Telemetryネットワーク監視を備えており、自動化メンテナンスと容易化・効率化なネットワーク管理を提供します。
ご相談・お問い合わせ
特長
仕様
関連製品
ダウンロード

特長

100Gデータセンターアクセススイッチ

RG-S6580-48CQ8QC

1Uサイズで、充実したポート、データ転送速度の向上、より柔軟な設置シーンを実現するデータセンター高密度アクセス機器です。
100Gサーバーアクセスに対応、100G/400Gデータセンターネットワークへの展開が可能です。

ハードウェア級の冗長保護、業務の連続性を保証、ネットワーク中断を防止

ホットスワップ冗長電源
ホットスワップ冗長ファン

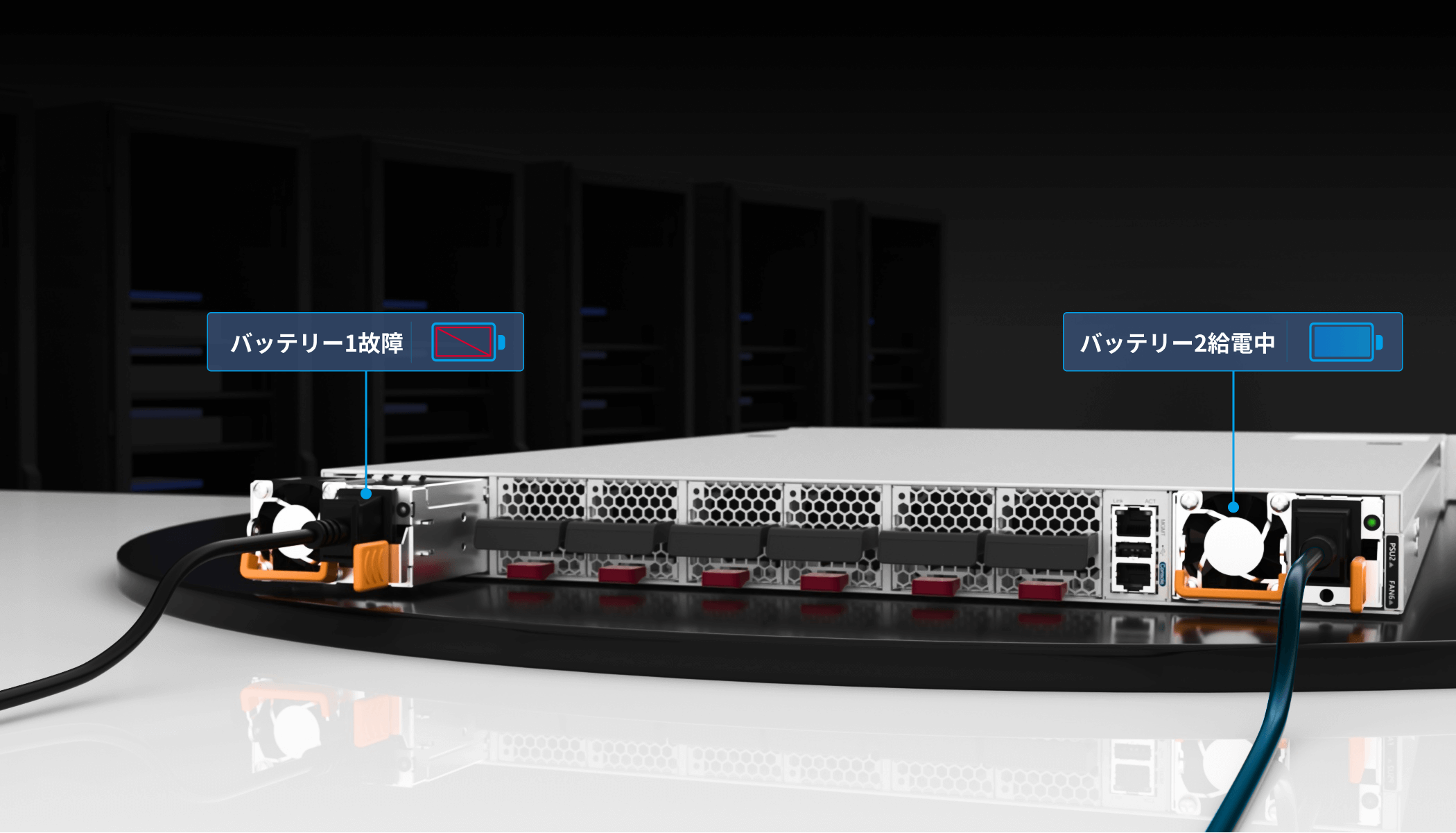

電源は1+1の冗長構成、ホットスワップ対応、故障時に素早く切り替えることにより、中断のない動作を保証します。

無損失イーサネットを構築、エンドツーエンドのRDMA通信プ
ロセスで業務データのパケットロスを防止

リモートダイレクトメモリアクセス（RDMA）技術、デバイス通信時にデータはCPU処理不要、CPU負荷を軽減、ネットワークの遅延問題を効果的に解決、
PFC+ECN技術、データのスマート交換、パケットロス防止、ネットワークデータの無損失伝送を保証。

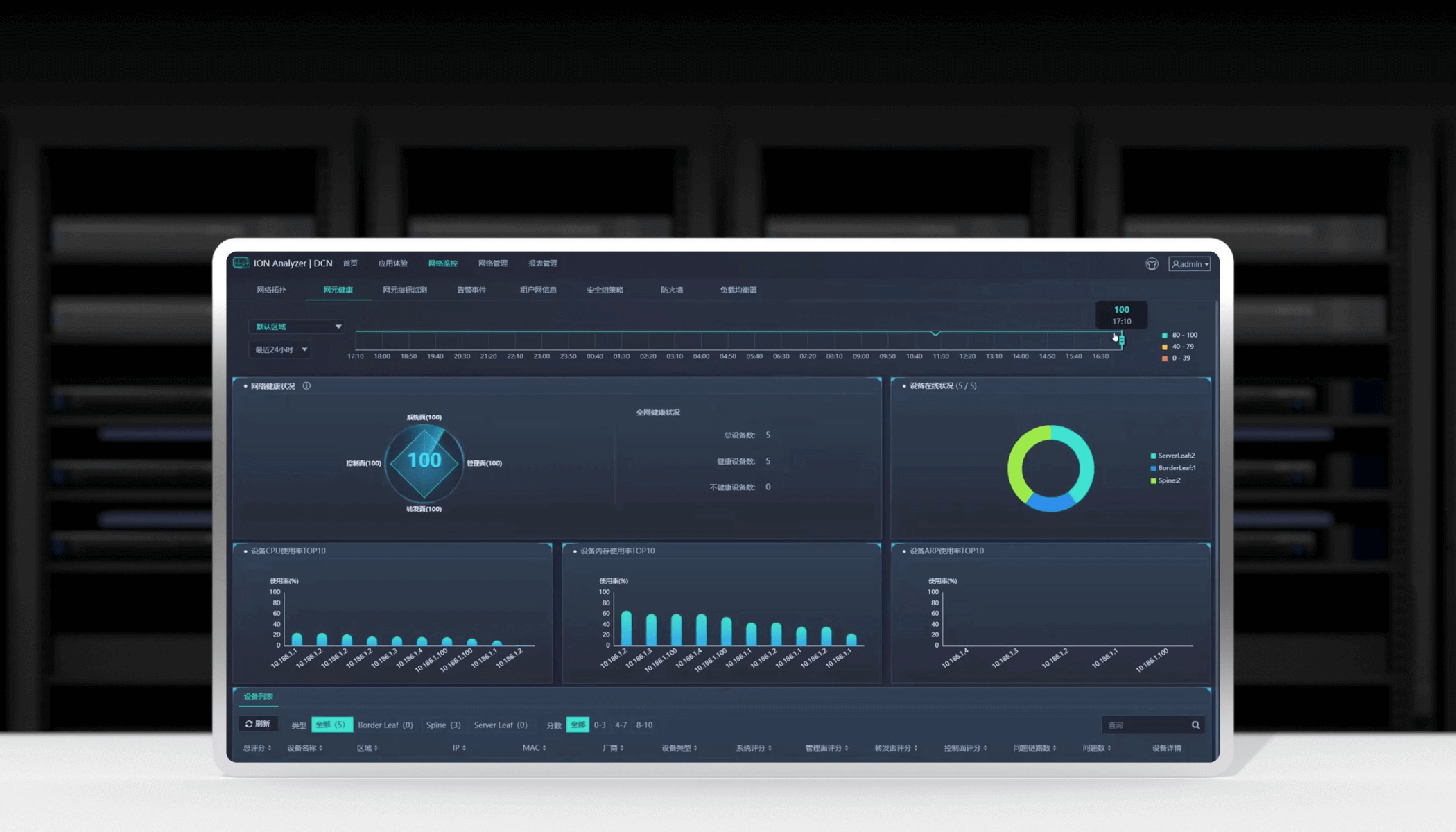

Telemetryネットワーク監視、自動的にメンテナンス、
容易化・効率化なネットワーク管理を実現

Telemetryネットワーク監視技術を採用、データステータスや階層化がより明確に。「プッシュモード」で自発的に情報を収集・送信、
1秒未満のネットワーク監視をリアルタイムに提供、ネットワーク管理の効率と精度を向上。

仕様

Hardware Specifications

System Specifications

RG-S6580-48CQ8QC

RG-S6580-24DC8QC

Ports

48 × 100GE ports (DSFP) + 8 × 400GE ports (QSFP-DD)

24 × 200GE ports (QSFP56) + 8 × 400GE ports (QSFP-DD)

Expansion Modules

Not supported

Expansion Module Slots

Two power supply module slots (1+1 redundancy)

Six fan module slots (5+1 redundancy; at least 5 fan modules are required)

Management Port

One management port, one console port, and one USB port, compliant with the USB2.0 standard

Switching Capacity

16.0 Tbps

Packet Forwarding Rate

5350 Mpps

802.1Q VLAN

4094

Dimensions

RG-S6580-48CQ8QC

RG-S6580-24DC8QC

Dimensions (W × D × H)

442 mm x 700 mm x 44 mm (17.40 in. x 27.56 in. x 1.73 in., 1 RU)

442 mm x 670.8 mm x 43.6 mm (17.40 in. x 26.41 in. x 1.72 in., 1 RU)

Weight

Chassis with six fan modules and two power supply modules: 11.5 kg (25.35 lbs.)

Chassis with six fan modules and two power supply modules: 11 kg (24.25 lbs.)

Power Supply and Consumption

RG-S6580-48CQ8QC

RG-S6580-24DC8QC

Power Input

AC input

RG-PA1200I-F module

● Rated voltage: 110 V AC/220 V AC

● Rated voltage range: 100 V AC to 127 V AC (50 Hz to 60 Hz), rated current: 13.8 A

● Rated voltage range: 200 V AC to 240 V AC (50 Hz to 60 Hz), rated current: 8.5 A

● Max voltage range: 90 V AC to 264 V AC (47 Hz to 63 Hz)



HVDC input

RG-PA1200I-F module

● Rated voltage: 240 V DC

● Max voltage range: 180 V DC to 300 V DC

● Max input current: 6.5 A

Maximum Power Consumption

● Max: 742 W

● Typical: 633 W

● Static: 178 W

● Max: 850 W

● Typical: 700 W

● Static: 300 W

Environment and Reliability

RG-S6580-48CQ8QC

RG-S6580-24DC8QC

Temperature Alarm

Temperature alarms and overheat protection

Operating Temperature

0ºC to 40ºC (32ºF to 104ºF)

Storage Temperature

–40°C to +70°C (–40ºF to +158ºF)

Operating Humidity

10% RH to 90% RH (non-condensing)

Storage humidity

5% to 95% RH (non-condensing)

Working altitude

Operating altitude: up to 5000 m (16,404.20 ft.)

Storage altitude: up to 5000 m (16,404.20 ft.)


Software Specifications

Software Specifications

RG-S6580-48CQ8QC

RG-S6580-24DC8QC

L2 Protocols

IEEE 802.3x, IEEE 802.3ad (Link Aggregation Control Protocol), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), Jumbo Frame (9 KB)

L3 Protocols (IPv4)

BGP4, OSPFv2, RIPv1, RIPv2, LPM routing, Policy-based Routing (PBR), route-policy, Equal-Cost Multi-Path Routing (ECMP), WCMP, VRRP

IPv6 Basic Protocols

Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS

IPv6 Features

Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+

ACL

ACL 80、ACL-based Redirection、IPv6 ACL、Extended/Standard IP/MAC-based ACL、Time-based ACL、Global ACL、When an ACL is applied to different physical interfaces or SVIs, resources can be shared.、ACL Counter、ACL Counter Only、ACL Logging、Diplaying ACL Resource Usage、Expert-level ACL、IPv4 UDF ACL、Global ACL Counter Only、Matching Against the Inner 5-Tuple of the VXLAN、IPv6 UDF ACL、Matching Against the Inner 5-Tuple of the Passing VXLAN、Ingress/Egress ACLs

ACL80、ACL-based redirection、IPv6 ACL、Extended/Standard IP ACL、Extended MAC ACL、Time-based ACL、Global ACL、Resource sharing in the case of applying an ACL on different physical ports or SVIs、ACL counter、ACL counter only、ACL logging、Displaying ACL resource usage、ACL-based re-marking、Expert-level ACL、IPv4 user-defined function(UDF) ACL、Configuring ACL counter-only globally、ACL matching against the inner 5-tuple of VXLAN packets、IPv6 UDF ACL、ACL matching against the inner 5-tuple of packets passing through the VXLAN

Data Center Features

PFC, ECN, and other data center features

RDMA

Visualization

gRPC

sFlow sampling

QoS

Mapping of IEEE 802.1p, DSCP, and ToS priorities

ACL-based traffic classification

Priority marking/remarking

Multiple queue scheduling mechanisms, including SP, WRR, WFQ, DRR, SP+WRR, SP+WFQ, and SP+DRR

Congestion avoidance mechanisms such as WRED and tail discarding

HA Design

GR for RIP/OSPF/BGP, BFD, DLDP, REUP dual-link fast switching, RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swapping for all cards and power supply modules

Security Features

Network foundation protection policy (NFPP), CPP, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, broadcast packet suppression, hierarchical user management

Management Mode

SNMP v1/v2c/v3, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP, syslog, SPAN/RSPAN/ERSPAN, ZTP, NETCONF, Python, fan and power alarm, and temperature alarm

Other Protocols

DHCP client, DHCP relay, DHCP server, DNS client, ARP proxy, and Syslog



Safety and Regulatory Compliance

Specifications

RG-S6580-48CQ8QC

RG-S6580-24DC8QC

Safety

● IEC 62368-1

● EN 62368-1

● BS EN 62368-1

● GB 4943.1

● GB 4943.1

Electromagnetic Compatibility (EMC)

● EN 55032

● BS EN 55032

● EN 55035

● BS EN 55035

● EN 61000-3-2

● EN 61000-3-3

● BS EN 61000-3-2

● BS EN 61000-3-3

● EN 300 386

● GB/T 9254.1

● GB/T 9254.1

● VCCI-CISPR 32:2016

Environment

● 2011/65/EU EN 50581

● 2012/19/EU EN 50419

● (EC) No.1907/2006

● GB/T 26572

● 2011/65/EU EN 50581

● 2012/19/EU EN 50419

● (EC) No.1907/2006

● GB/T 26572

*For more country-specific regulatory information and approvals, contact your local sales agency.

関連製品

System Specifications

RG-S6580-48CQ8QC

Port Form

48 × 100G ports (DSFP) + 8 × 400G ports (QSFP-DD)

Number of Expansion Slots

Not supported

Expansion Module

Two power modules (1+1 redundancy)

Fix fan modules (5+1 redundancy; the system needs at least 5 fan modules)

Management Port

One MGMT port, one console port, and one USB port, compliant with the USB2.0 standard

Switching Capacity

16.0 Tbps

Packet Forwarding Rate

5350 Mpps

802.1Q VLAN

4094

Dimensions and Weight

RG-S6580-48CQ8QC

Dimensions (W × D × H)

442 mm × 700 mm × 44 mm, 1RU

Power Supply and Consumption

RG-S6580-48CQ8QC

Power Input

AC input:

l  Rated voltage range: 200–240 V AC

l  Maximum voltage range: 90–264 V AC

l  Frequency: 50–60 Hz

l  Rated input current: 8 A

HVDC input:

l  Input voltage range: 192–288 V DC

l  Rated input current: 6.5 A

Overall Power Consumption

Static power consumption: 178 W

Dynamic power consumption (maximum): 742 W

Typical power consumption: 633 W

Environment and Reliability

RG-S6580-48CQ8QC

Temperature Alarm

Temperature alarms and overheat protection are supported.

EMC

GB/T 9254.1

Safety Regulation

GB 4943.1

Operating Temperature

0ºC to 40ºC

Storage Temperature

–40°C to +70°C

Operating Humidity

10% to 90% RH (non-condensing)

Software Specifications

RG-S6580-48CQ8QC

L2 Protocols

IEEE 802.3ae (10GBase), IEEE 802.3ak, IEEE 802.3an, IEEE 802.3x, IEEE 802.3ad (link aggregation), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), Jumbo Frame (9 Kbytes)

L3 Protocols (IPv4)

BGP4, OSPFv2, RIPv1, RIPv2, LPM routing, policy-based routing, route-policy, ECMP, WCMP, VRRP

IPv6 Basic Protocols

Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS

IPv6 Features

Static routing, ECMP, policy-based routing, OSPFv3, RIPng, BGP4+, etc.

Data Center Features

PFC, ECN, and other data center features

RDMA

Visualization

gRPC protocol

sFLOW high-precision sampling

QoS

Mapping of IEEE 802.1p, DSCP, and ToS priorities, ACL-based traffic classification, priority mark/remark, multiple queue scheduling mechanisms (including SP, WRR, WFQ, DRR, SP+WRR, SP+WFQ, SP+DRR), and congestion avoidance mechanisms (WRED, and trail drop)

HA Design

GR for RIP/OSPF/BGP, BFD, DLDP, REUP dual-link fast switching, RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swapping for all cards and power modules

Security Features

Network foundation protection policy (NFPP), CPP, RADIUS/TACACS, ACL-based IPv4/v6 packet filtering by standard and extended VLANs, plaintext-based and MD5 ciphertext-based authentication for OSPF, RIPv2, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, broadcast packet suppression, hierarchical user management

Management Mode

SNMP v1/v2/v3, telnet, console, MGMT, RMON, SSHv1/v2, upload/download management of FTP/TFTP files, NTP, syslog, SPAN/RSPAN/ERSPAN, ZTP, NETCONF, Python, fan and power alarm function, and temperature exception alarm function

Other Protocols

DHCP client, DHCP relay, DHCP server, DNS client, ARP proxy, syslog
